1000 YARD DETECTION RANGE TO

GO THE DISTANCE.

A 1,500 yard detectionallows you to capture sharp thermal images and smoothly traacks rapid motion in the distance.

Magnification ranges 1-4x so you don’t miss any of the important details.

HIGH-PERFORMANCE

THERMAL SENSOR

See what’s out there at night with crystal clear images on its 1.63” 640x400 AMOLED display containing the 320x280 thermal sensor.

FEATURES A PICATINNY

QUICK-RELEASE MOUNT

Compact and lightweight to easily mount into multiple firearms.

PRODUCT DESCRIPTION

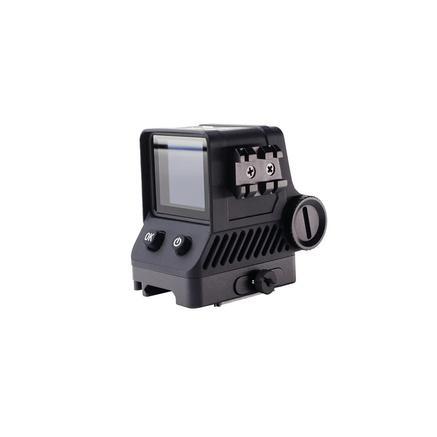

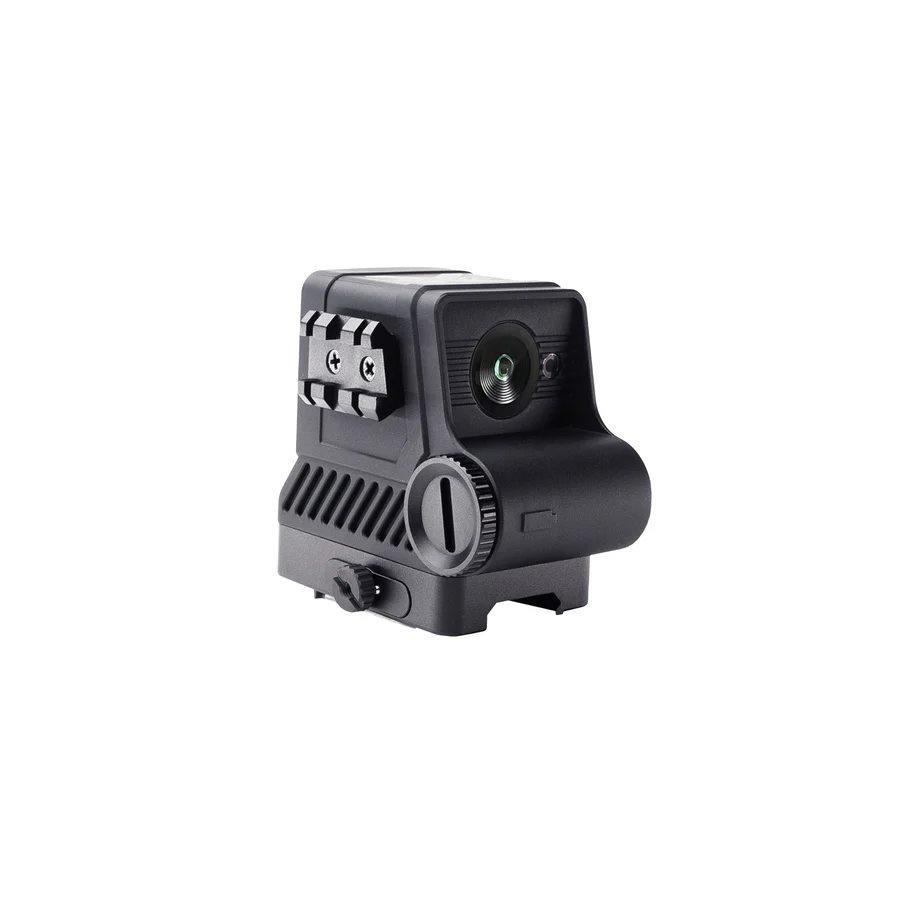

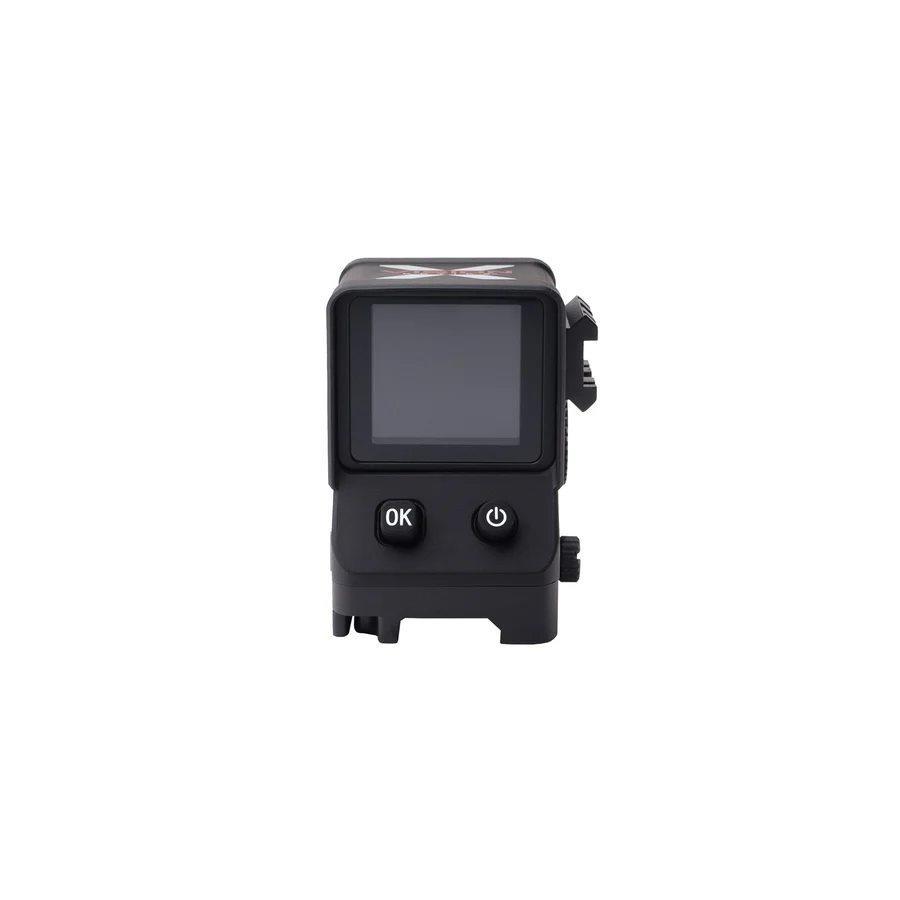

Flex 1 Thermal Reflex Sight

X-Vision Optics’ all-new Thermal Reflex Sight (TR1) is by far the best bang for your buck when it comes to thermal units on the market today. With a detection range up to 1,500 yards, this incredibly compact sight produces crystal clear images on its 1.63” 640 x 400 AMOLED display. The TR1 also features a quick-release Picatinny mount and IP67 weatherproof rating so it will hold up in any terrain and tough weather conditions.

Tech Specs & Features

Accessories Included: Dual Battery Charger, USB-C Cable Rechargeable CR123 (2 incl.)

Thermal Sensor: 320x280
Magnification: 1 to 4x
Detection Range: 1,500 YD
Display Resolution: 1.63" 640x400 AMOLED
Battery Life: 4 Hours
Photo & Video: No
Rangefinding: No
Frame Rate: 25 Hz
Field of View: 125ft @ 100 YD

Applications: No
Recognition Range: 600 YD
Pixel Size: 17 μm
Objective Lens: 13mm
Laser: 650 nm
Hotspot Tracking: No
Picture-In-Picture: No
Internal/External Memory: No
NETD: ≤40 mk

Temperature Variation Detection: 0.07? F
Reticle Pattern: 5
Reticle Color: 4
Thermal Color Palettes: 5
Power Supply: Rechargeable 16340 (2 inc)
IP Rating: IP67
Mount: Quick Release Picatinny
Recoil: 800 G
Dimensions: 2.3" x 3.17" x 2.9"
Weight: 0.55lb lb

DOCUMENTATION

Flex 1 Thermal Reflex Sight - Owner's Manual
