Product Details

Catalog Page

N/A

Brand

MILWAUKEE

Jaw Style

Clamp-Jaw

Safety Rating

CAT III 600V

AC Response Calculation

TRMS

Calibration Certificate Included

Yes - NIST with Data

Max. AC Current

600 A

Max. DC Current

600 A

Max. AC Voltage

600 V

Max. DC Voltage

600 V

Parameters Measured

• AC Voltage
• DC Voltage
• AC Current
• DC Current
• Capacitance
• Frequency
• Resistance

Bluetooth Compatible

No

Current Leakage Testing

No

Data Logging

Yes

Dustproof

Yes

Instrument Counts

6,000

Intrinsically Safe

No

Removable Screen

No

Thermal Imaging

No

Waterproof

Yes

Max. Resistance

6 kiloohm

Auto Ranging

Yes

Audible Continuity

Yes

Jaw Opening

1.3 in

Data Hold

Yes

Display Type

High Contrast White on Black LCD

Includes

Battery

Manufacturer Part Number

2237-20NST

Battery Size

AA

AC Current Measurement Resolution

0.1 A

AC Voltage Measurement Resolution

0.1 V

DC Current Measurement Resolution

0.1 uA

DC Voltage Measurement Resolution

0.1 V

Capacitance Measurement Resolution

40 nF

Resistance Measurement Resolution

0.001 kiloohm

Basic AC Current Accuracy

±2.0%

Basic AC Voltage Accuracy

±1.5%

Basic DC Current Accuracy

±1.50%

Basic DC Voltage Accuracy

±1.0%

Capacitance Measurement Accuracy

±2.5%

Frequency Measurement Accuracy

±0.50%

Resistance Measurement Accuracy

±1.00%

Manufacturers Warranty Length

5 yr

Calibration Frequency

50 to 60 Hz

Frequency Counter

1 Hz to 10 kHz

Maximum Capacitance Measurement

40 mF

Non-Contact Voltage Detector

Yes

Memory

Max/Min

Sub-brand

Milwaukee

Auto Power Off

Yes

Batteries Included

Yes

Battery Access

Yes

Battery Chemistry

Alkaline

Overall Height

9.5 in

UNSPSC

41113601

Country of Origin

USA (subject to change)

Product Description

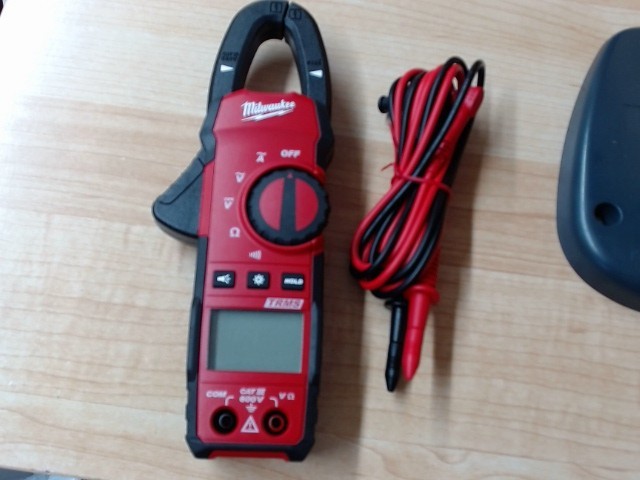

Clamp-jaw meters have iron jaws sheathed in plastic that fasten around different types of conductors to measure electrical current. These instruments show measurements on a large digital display.
